Clocks tower and mechanism/Movement motor for public tower clocks 1m 1.5m 2m 3m dia. GOOD CLOCK(YANTAI)TRUST-WELL CO LTD

Large Image : Clocks tower and mechanism/Movement motor for public tower clocks 1m 1.5m 2m 3m dia. GOOD CLOCK(YANTAI)TRUST-WELL CO LTD

Product Details:

Place of Origin:	China
Brand Name:	TIMEMATE
Certification:	PATENT
Model Number:	79M-TC

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	Special made strong wooden case
Delivery Time:	fast
Payment Terms:	T/T

Contact Now

Clocks tower and mechanism/Movement motor for public tower clocks 1m 1.5m 2m 3m dia. GOOD CLOCK(YANTAI)TRUST-WELL CO LTD

Description

Movement series for specialty clocks

Movement available	Size for clock diameters (m)	materials	Drive mode	Suitable for
For tower building clock with two hands	0.6m- 10 m	Iron, copper drive gears	Stepper motor	Tower building clock/street clock…
For tower wall clock with three hands	0.6m- 10 m	Iron, copper inside drive gears	Stepper motor	Tower building clock/street clock…
For floral clock with two hands	3.5m – 50m	Iron, copper drive gears	Stepper motor	Floral clocks, flower clock, garden clocks
For flower clock with three hands	3.5m – 50m	Iron, copper drive gears	Stepper motor	Floral clocks, flower clock, garden clocks
unique features: -1/high torque, lower noise 2/ fully closed- in and compact structure, self-locking ability, oiling needless 3/ Less power waste or abrasion 4/ weatherproof, maintenance-free for all its service life 5/easy for installation and much longer usage life 6/ our own special made lubricating oil 7/the movement can be used under the temperature of very hot and very cold or other bad weather condition, etc……. Note: the working mode of the movement is driven by its matched controller to move, buyers can use either our controller or made by themselves

Clocks tower and mechanism/Movement motor for public tower clocks 1m 1.5m 2m 3m dia. GOOD CLOCK(YANTAI)TRUST-WELL CO LTD 0

Clocks tower and mechanism/Movement motor for public tower clocks 1m 1.5m 2m 3m dia. GOOD CLOCK(YANTAI)TRUST-WELL CO LTD 1

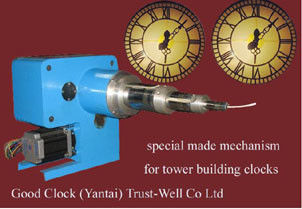

Description of movement series for big clocks

- Movement series are available for different sizes for tower clocks, floral clocks and city clocks.

- The movement is with the compact structure of worm gear pair which is made of fine copper materials

- Working with stepper motor, with high driving strength, big torque, lower noise

- The movement can keep good working state under bad weather condition, the clock hands can be exposed directly outdoor, no need protecting glass

- Maintenance free for all its usage life, the motor shaft and the worm driving shaft are rigid connection, ensures

The accuracy of the time system.

- Al so available for movement used for clocks with hour, minute and second hand, it is One-of-a-kind movement, hey work by the same motor with hour and minute hand and keep synchronization for the whole time system, which can much more ensure the accuracy of working time, and the second hand runs the real time, one circle’s running is 1 minute.

Locating at the birthplace of China's clock industry, we have already over 30 years' history of clock manufacture, looking forward to working with you, thank you!
