Clocks Tower and Movement / Mechanism for Outdoor Building Big Analog Clocks 3m 3.5m

Large Image : Clocks Tower and Movement / Mechanism for Outdoor Building Big Analog Clocks 3m 3.5m

Product Details:

Place of Origin:	Yantai, China
Brand Name:	TIMEMATE
Certification:	STATE PATENT
Model Number:	TC3000

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	by discussion
Packaging Details:	Strong export standard cartons or wooden crate, lined well with breakage-proof and shockproof protective film and poly foams
Delivery Time:	within 15 days
Payment Terms:	L/C, Western Union, MoneyGram, T/T
Supply Ability:	30pcs per month

Contact Now

Clocks Tower and Movement / Mechanism for Outdoor Building Big Analog Clocks 3m 3.5m

Description

Materials:	Quality Iron For Movement And Brass For Inside Drive Gears	Movement Motor:	Stepper Motor Type With Higher Drive Power
Master Controller:	With Higher Intelligent Master Clock For Easy And Simple Operation	Time Error:	Very Little, With GPS Standard Time Signal Receiver, It Can Keep The Clock System In Accurate Working Condition And No Accumulated Time Error
Diameter Size Available:	1m - 10m Diameters For Tower Clocks And 3.5m - 25m Diameters For Floral Clocks	Working Power:	220V +/_ 20V, DC 12V
Warranty:	2 Years And Technical Support Is Forever	Manufacture By:	Good Clock (Yantai) Trust-Well Co., Ltd.

Product Description:

Our Production Line

Our key and strong production line is series movement for tower clocks, floral / garden clocks, over size wall clock for both indoor and outdoor building,

Top Quality Products Applied for Specialty Big Clocks

The movement is a very important part in the tower clocks system, just like people's heart, and the master control system is also important as well, just like people's brain with intelligent mechanism, our strong movement series plus high intelligent master driving controller will entirely ensure the proper working state of the whole time – control - system.

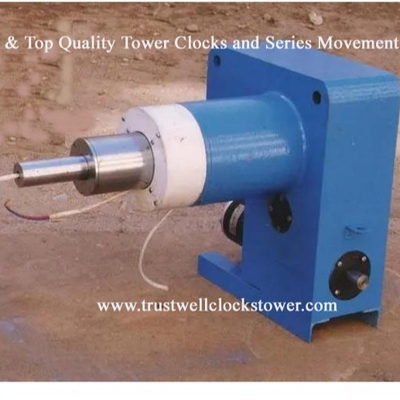

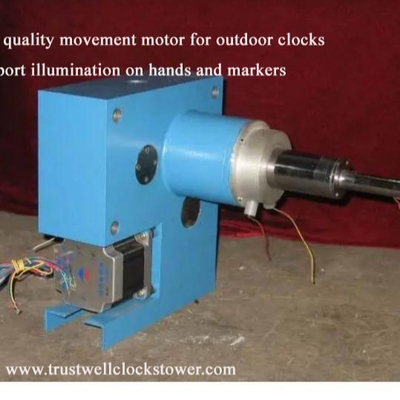

Unique Movement Series

The movement series we made are with unique features, such as: weather proof, strong power for resisting heavy wind, rain typhoon and other kinds of bad weather condition, using our movement, the clock hands can be exposed directly outdoor, no need the glass cover, and it is maintenance free for all usage life. The totally enclosed structure can ensure it with lower noise below, and high working accuracy,

High Intelligent Master Clock Series

This clock-control-system is controlled by a microprocessor with the function of drive for time going, time telling, illumination, prolonged power outages, time-memorizing when power cut, self-tracing time when power resume, and GPS synchronization, etc.

Movement available	Size for clock diameters (m)	materials	Drive mode	Suitable for
For tower building clock with two hands	0.6m- 10 m	Iron, brass drive gears with worm structure	Stepper motor	Tower building clock/street clock…
For tower wall clock with three hands	0.6m- 10 m	Iron, brass inside with worm structure drive gears	Stepper motor	Tower building clock/street clock…
For floral clock with two hands	3.5m – 50m	Iron, brass inside with worm structure drive gears	Stepper motor	Floral clocks, flower clock, garden clocks
For flower clock with three hands	3.5m – 50m	Iron, brass inside with worm structure drive gears	Stepper motor	Floral clocks, flower clock, garden clocks
unique features: 1/high torque, lower noise 2/ fully closed- in and compact structure, self-locking ability, oiling needless 3/ Less power waste or abrasion 4/ weatherproof, maintenance-free for all its service life 5/easy for installation and much longer usage life 6/ our own special made lubricating oil 7/the movement can be used under the temperature of very hot and very cold or other bad weather condition, etc……. 8/ there’re movement items for supporting night illumination function on minute/hour hand and marks/numerals. 9/ the movement for three hands clocks over 2m diameters will work with the one motor, the second hand will work in synchronization with the minute/hour hand. 10/ there also movement items which can correct the time by movement itself at the fixed time with a position sensor. Warm Tips: the working mode of the movement is driven by its matched controller to move, buyers can use either our controller or their owns, we are glad to supply our detailed technical parameters for buyers reference to make their own electronic master controller and matched our movement.
