Movement series for specialty clocks
|
Movement
available
|
Size for clock
diameters (m)
|
materials
|
Drive mode
|
Suitable for
|
| For tower building clock with two hands |
0.6m- 10 m |
Iron, copper drive gears |
Stepper motor |
Tower building clock/street clock… |
| For tower wall clock with three hands |
0.6m- 10 m |
Iron, copper inside drive gears |
Stepper motor |
Tower building clock/street clock… |
| For floral clock with two hands |
3.5m – 50m |
Iron, copper drive gears |
Stepper motor |
Floral clocks, flower clock, garden clocks |
| For flower clock with three hands |
3.5m – 50m |
Iron, copper drive gears |
Stepper motor |
Floral clocks, flower clock, garden clocks |
|
unique features: -1/high torque, lower noise 2/ fully closed- in and compact structure, self-locking ability, oiling needless 3/ Less power waste or abrasion 4/ weatherproof, maintenance-free for all its service life 5/easy for installation and much longer usage life 6/ our own special made lubricating oil 7/the movement can be used under the temperature of very hot and very cold or other bad weather condition, etc…….
Note: the working mode of the movement is driven by its matched controller to move, buyers can use either our controller or made by themselves
|

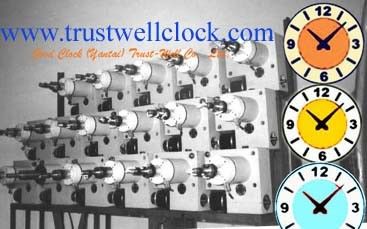

Description of movement series for big clocks
- Movement series are available for different sizes for tower clocks, floral clocks and city clocks.
- The movement is with the compact structure of worm gear pair which is made of fine copper materials
- Working with stepper motor, with high driving strength, big torque, lower noise
- The movement can keep good working state under bad weather condition, the clock hands can be exposed directly outdoor, no need protecting glass
- Maintenance free for all its usage life, the motor shaft and the worm driving shaft are rigid connection, ensures
The accuracy of the time system.
- Al so available for movement used for clocks with hour, minute and second hand, it is One-of-a-kind
movement, hey work by the same motor with hour and minute hand and keep synchronization for the
whole time system, which can much more ensure the accuracy of working time, and the second hand
runs the real time, one circle’s running is 1 minute.
Locating at the birthplace of China's clock industry, we have already over 30 years' history of clock manufacture, looking forward to working with you, thank you!
